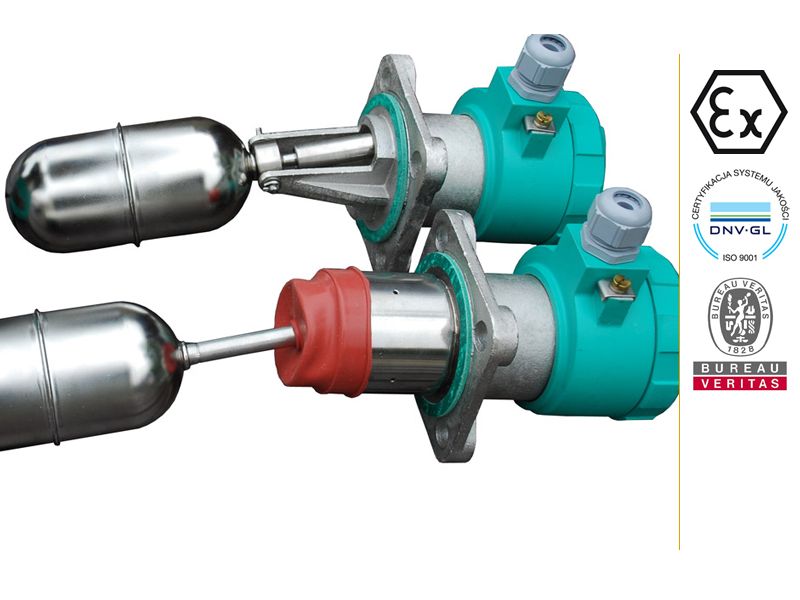

The Aplisens ERH float level switches are used for point level detection of liquids in all type of vessels. Operation without external power, side or top mounting, wide temperature and pressure ranges, various process connections, stainless steel wetted

Level Switch ERH

SKU: ERH

Manufacturer: Aplisens

Float level switches are used for point-level detection of liquids in all types of vessels. Operation without external power, side or top mounting, wide temperature, and pressure ranges, various process connections, stainless steel wetted parts,
Ex version and marine certificates make it a universally applicable level switch.

pdf datasheet
Ask a question about this product

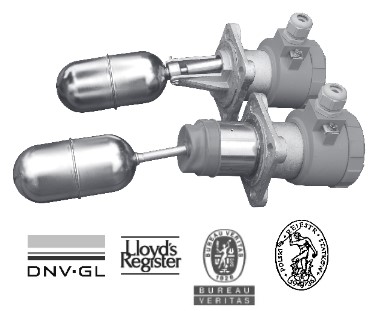

ERHcertLevel switches are available with floats in two sizes: Ø64.5 x 130mm or Ø52 x 162mm)

  • Explosion proof version
  • Wetted parts material 321SS
  • Housing material: Aluminium or 321SS
  • Housing protection IP66/68
  • Nominal pressure 40bar
  • Marine certificates (GL, DNV, LR, ABS, BV, PRS)
