horizontal testbenches

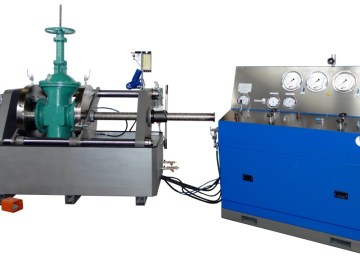

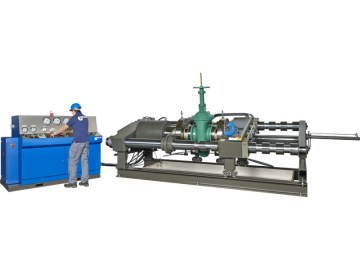

The horizontal test bench EFCO PS-H M series in modular design with a clamping force of 200 - 600 t for testing shut-off and control valves. Water examinations are possible in combination with air or nitrogen.

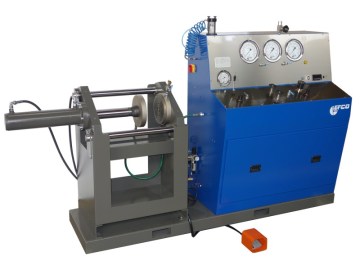

The EFCO PS-H 15-75M series combines a wide field of application in valve housing strength tests and leakage tests for valve housings and seats with high EFCO quality. The PS-H 15-75M is available with various clamping forces starting at 25 up to 75 t. Depending on the corresponding model water examinations are possible in combination with air or nitrogen.

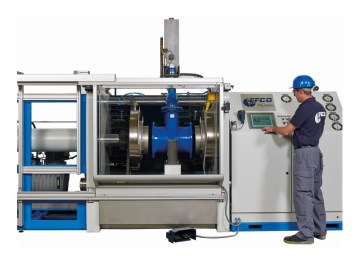

Individual horizontal test benches for clamping 2-way globe valves horizontally between 2 test tables. Clamping force: 7,5t-1500t DN range: DN 10 to DN 1500 Test pressure: up to 1380 bar (20000 psi) or higher
