Handheld HART Communicator
SKU: KAP03, KAP03EX
Manufacturer: Aplisens

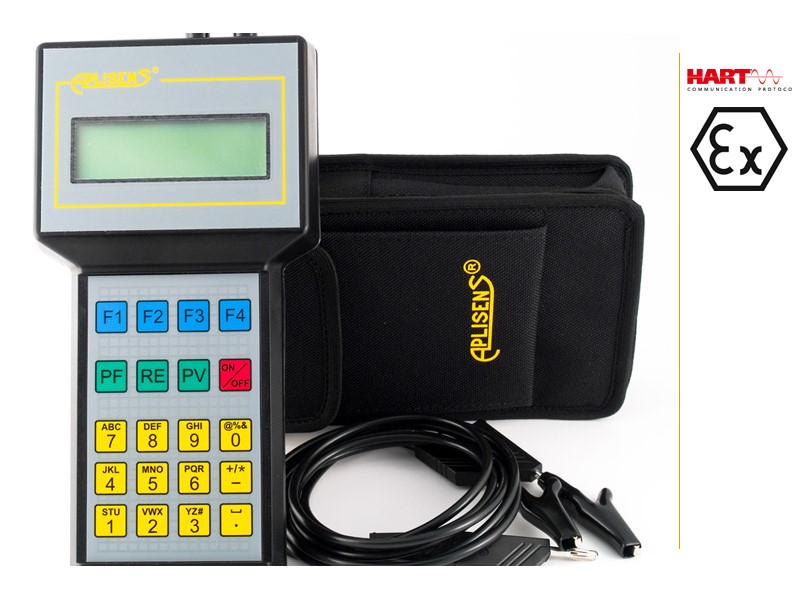

KAP-03 HART Field communicator is a portable and battery powered device specifically designed for communicating with Aplisens SMART transmitters, explosion proof option
download PDF Hart Communication Tools
download PDF Hart Communication Tools
The KAP-03 (KAP-03Ex) HART field communicator is a portable battery supplied device used for communication and exchange of data with smart transmitters e. g. pressure, differential pressure transmitters. It features an output built as a standard current loop 4-20 mA, using FSK modulation type BEL 202 with an implemented HART communication protocol revision 5 and revision 6. The communicator is specially designed to configure smart transmitters manufactured by APLISENS:
- Calibration
- Spot check
- Zeroing & Span
KAP-03 versions:
KAP-03 - standard version
KAP-03Ex - intrinsic safe version II 2G Ex ia IIC T4 Gb
