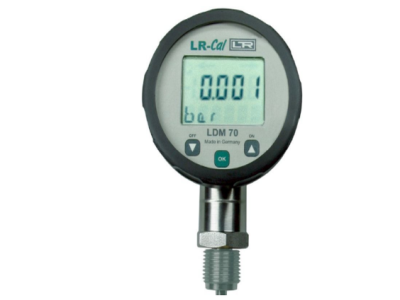

Digital reference pressure gauge LDM 70

The display is continously rotatable so that a clear readability is garanteed even in unusual installation positions. The LR-Cal LDM 70 can be operated menu-driven via three push-buttons. Besides showing information about the nominal pressure range as well as minimal and maximal pressure of the process, several pressure units (psi, bar, mbar, mWC, inHg, cmHg, mmHg, kPa, MPa) and the position of the decimal point can be set. The instruments zero and span can be calibrated, and the LR-Cal LDM 70 can be set to factory default values via menu.

Features

• compact, rotatable housing (DS 70 mm)
• Battery powered
• 4.5 digit LC diisplay (digit height 11 mm)
• 6 digit additional display to sho the selected pressure unit (height 7.5 mm)
• Pressure units selectable: psi, bar/mbar, mWs, inHg, cmHg/mmHg, kPa/MPa
• Easy configuration via three push-buttons
• Ingress protection IP 65
• Ranges from 0...0.4 bar to 0...600 bar plus compound ranges and absolute pressure ranges
• MIN and MAX value memory

Models

LR-Cal LDM70-E25:

Accuracy ±0.125% FS BSFL (equal to ±0.25% IEC 60770)
(Ranges < 400 mbar: ±0.25% FS BFSL = ±0.5% FS IEC 60770)

LR-Cal LDM70-K50:

Accuracy ±0.25% FS as per BFSL (= ±0.5% FS as per IEC 60770)
