Non Contact Radar

The RC Series is a two-wire 24 GHz FMCW radar level transmitter for basic applications with solid products. It provides continuous, non-contact level measurement of stones, granules, flakes and other such solid products for a variety of industries. It makes an ideal solid level indicator for large or high bins and silos. pdf datasheet

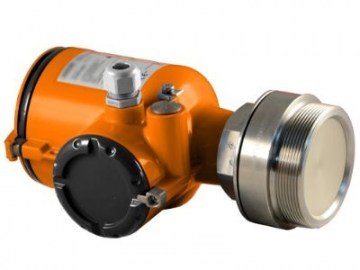

The RD Series two-wire 80 GHz FMCW radar level transmitter is designed for demanding applications with powders in very dusty atmospheres. With its small beam angle, this radar indicator is particularly suited for continuous, non-contact level measurement in high and narrow silos, hoppers or buffer storage containers up to 100 m/328 ft. Due to the high signal dynamics of the FMCW radar, the level transmitter is ideal for low-reflective media, dust, uneven surfaces or complex silo internal structures. As it features a flush-mounted PEEK lens antenna, there is no intrusion of the antenna into the silo, bin or hopper. It is ideal for dusty products such as cement, fly ash or GGBS. pdf datasheet

Hycontrol’s Reflex RA Series two-wire 80 GHz FMCW radar level transmitter is designed for hygienic liquids applications, where high precision is essential. It provides users in industries such as biochemical and food production with continuous, non-contact liquid level measurement. pdf datasheet

The RB Series two-wire 24 GHz FMCW radar level transmitter has been developed by Hycontrol for basic liquid process applications. The device is particularly appropriate for continuous, non-contact level measurement in the chemical, petrochemical, and oil and gas industries. Options for this liquid level indicator include metallic horn antennas or PP drop antennas for condensing atmospheres and corrosive media. pdf datasheet

Hycontrol’s RE Series two-wire 24 GHz FMCW radar level transmitter is designed for a broad spectrum of liquid applications, most notably for corrosive liquid products. It measures distance, level and volume of liquids and pastes, and is ideal for measuring the level of corrosive liquids in agitated tanks up to a range of 100 m/328 ft. The unique drop-shaped antenna option is perfectly suited for aggressive liquids, acids and other corrosive substances. pdf datasheet
