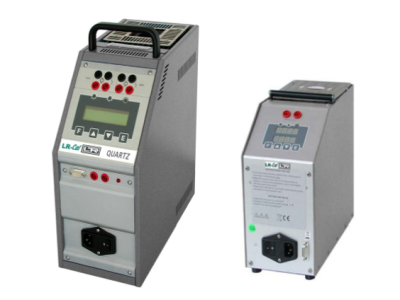

Dry Block Calibrator portable

The test temperatures, generated e.g. by resistance heating elements or peltier elements, are submitted to both, the test item (unit under test), e.g. thermometer, thermostat, glass thermometer, resistance thermometer, thermocouples, temperature switches etc., and the reference thermometer (build-in or external). The values of reference and test item(s) will be compared. In this way, not only the measuring accuracy but also the general function of test items can be checked easily and reproduceable.

Features:

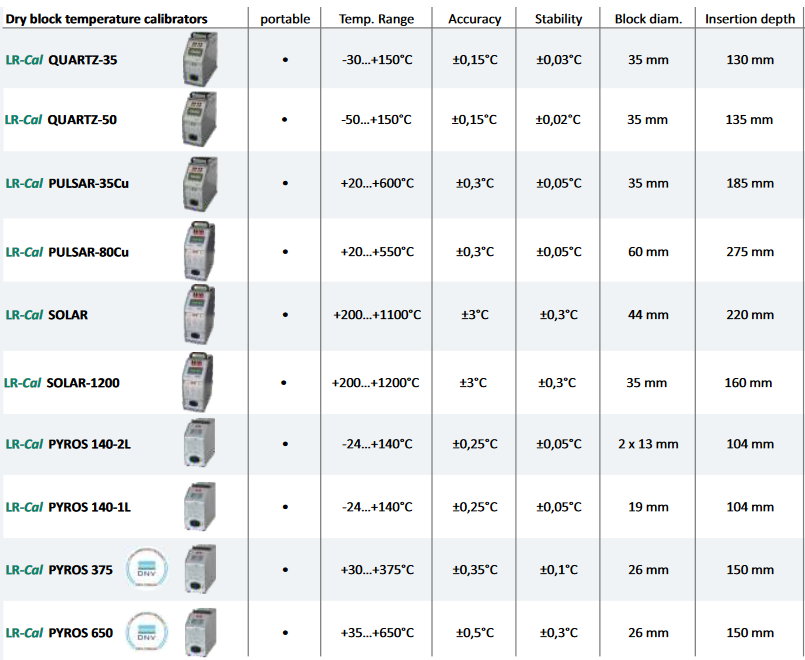

• 4 Model lines: Quarz (low temp), Pulsar (medium temp), Solar (high temp), Pyros (light weight models)
• versions with 2 measuring inputs
• Accuracy up to 0.15°C
• Stability up to ±0.02°C
• Block diameters from 35 mm to 60 mm
• Insertion depths from 104 mm to 275 mm
• PC-software LR-Cal AQ2sp option for RS232 remote control, stress tests, themrostat tests and calibration certificates
