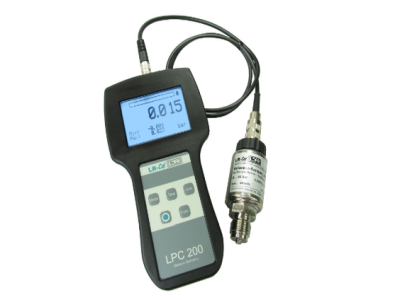

Electronic Pressure Calibrator LPC200

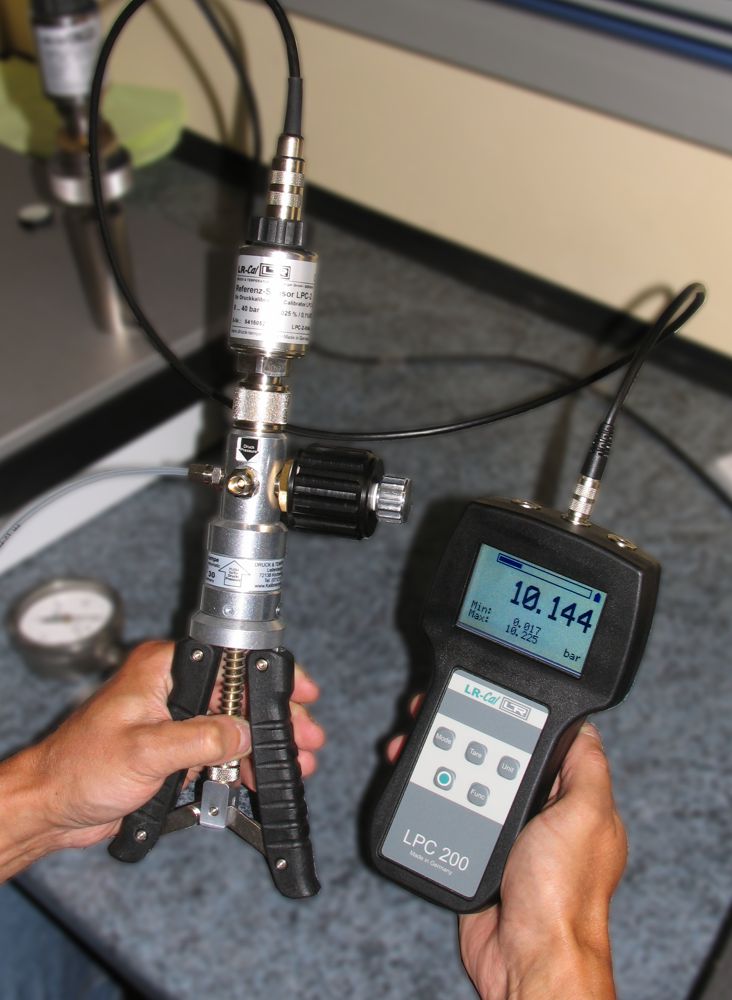

Together with a suitable calibration pressure source like the LR-Cal pressure test pumps and LR-Cal pressure comparison pumps, the LR-Cal LPC 200 offers a precision pressure calibration system, suitable also for use on site, portable. The LR-Cal LPC 200 also opens up other helpfull applications, e.g. recording of pressure curves (logging function), and leak testing (pressure rate function). These useful functions can be easily activated or deactivated by pressing the respective keys.

A factory certificate of calibration for each reference sensor certiefies the total uncertainty of the measuring chain. Alternatively, on request, a DAkkS calibration certificate can be supplied.

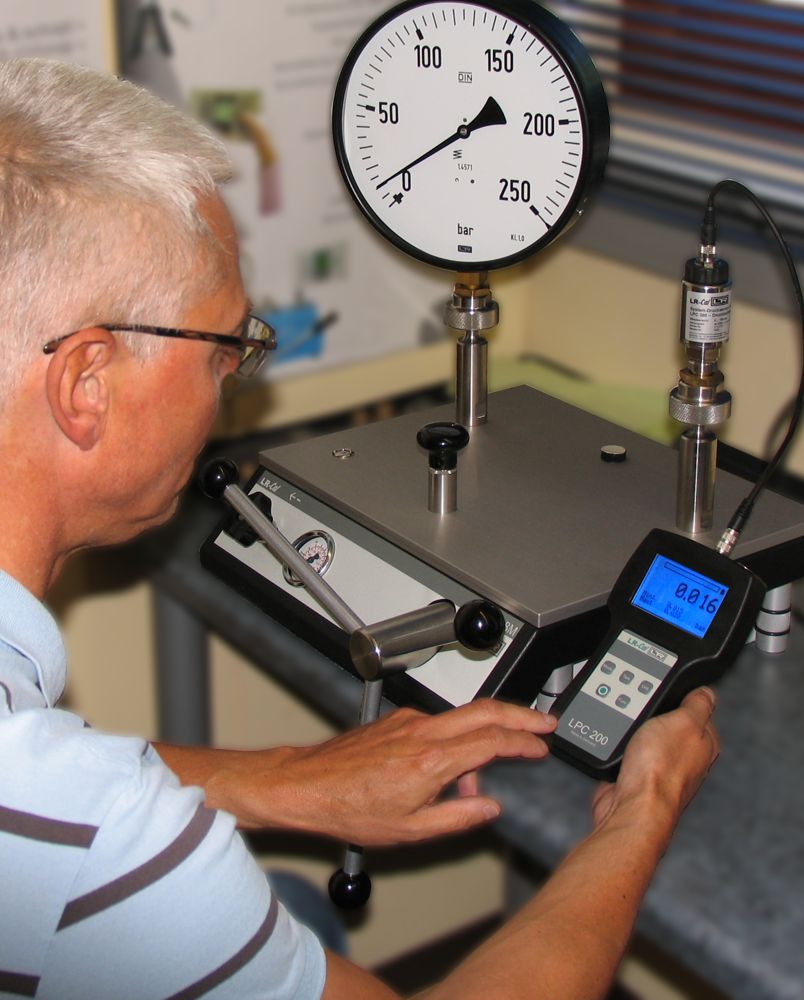

Druckkalibrator LR-Cal LPC 200 in Anwendung mit der Druckvergleichsprüfeinrichtung LR-Cal LSP 1000-BM
Using the optional LR-Cal LPC-Cal software, the logged data, stored in the LR-Cal LPC 200, can be transferred to a PC via an USB connection, where it can be stored in an MS-Excel file for documentation and further evaluation. In addition, LR-Cal LPC-Cal offers the possibility of PC-supported calibration of pressure measuring instruments using the LR-Cal LPC 200.

• Very simple operation
• Easy-read display (backlighting selectable)
• Changeable reference sensors LR-Cal LPC-2 (plug & play)
• Pressure ranges from 0...5.8 psi (400 mbar) to 0...87000 psi (6000 bar), also vacuum-, compound- and absolute pressure ranges
• Accuracy up to 1000 bar: ±0.025% FS; up to 6000 bar: ±0.1% FS; including certificate of calibration
• Logging function, pressure rate, min-/max value, Bargraph, Tare
• Issue calibration certificates with optional Windows-PC software LR-Cal
• Pressure calibration kit's, complete with pressure test pumps as portable calibration pressure sources
• Chargeable Lithium-Ion battery, incl. mains charger
• USB interface
• Selectable pressure units: PSI, bar, mbar, kPa, mmHg, inHg
