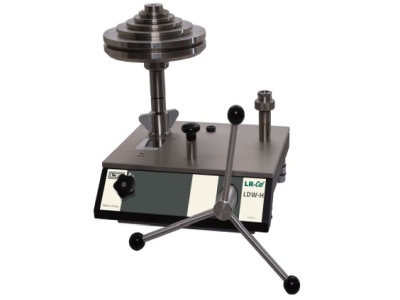

Hydraulic Deadweight Tester high accuracy LDW-H

Deadweight Tester (Pressure Balance, Primary Standard for Pressure), single-piston and double-piston versions, hydraulic, pressure ranges from 1...120 bar to 1...1,400 bar and 10...1,600 psi to 10...20,000 psi.
Accuracy (measurement uncertainty) to ±0.006% or to ±0.015% of measured value.

Applications:

Primary standard for defining the pressure scale in a range up to 1,400 bar hydraulic
Reference instrument for calibration laboratories and factory for the testing, adjustment and calibration of pressure measuring instruments
Complete, stand-alone system, also suitable for on-site use

Special features:

Total measurement uncertainty to 0.006% of measured value
Dual-range piston-cylinder system with fully automated changing between ranges
Factory calibration includes traceability to national standars, as standard. Optional with UKAS or DKD/DAkkS calibration
High long-term stability with recommended recalibration cycle every 5 years
Fast and safe replacement of the piston-cylinder system via quick-release system as an option
