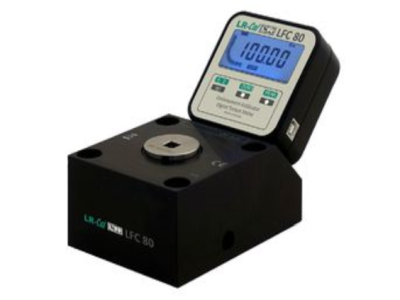

Torque and Force Meter for Benches LFC80

The LR-Cal LFC 80 is a torque bench for static measurements, composed of a digital indicator and a strain gauge torque, extremely rugged and compact with a precision better than 0.20%.
It is ideal for the calibration and control of torque wrenches, screwdrivers, direct reading and snap. The indicator is powered by a Li-Ion chargeable battery with an autonomy of 80 hours, with the AUTO POWER OFF function, which occurs when there are not changes in measurement for a programmable period of time. It allows in static mode a very high resolution and in PEAK mode an acquisition frequency of 4800 measurements per second. The instrument and PEAK functions are working in clockwise direction as well as in counter-clockwise direction. The display of the LR-Cal LFC 80 can be rotated by 90° to be able to work both, horizontally and vertically (using the optional 90° bracket). The device is equipped with an USB 2.0 interface with a transmission rate of 4800 values per second in PEAK mode. A programmable "First PEAK" function makes it easy to avoid mistakes during calibration of torque wrenches.

Features:

• Ranges from 0...0.5 Nm to 0...2000 Nm
• You can select from 9 torque measuring units
• Accuracy ±0.20% FS
• Incl. ACCREDIA (DAkkS) certificate from 1/10 of range for clockwise direction,
  Total uncertainty <=1% FS
  (Ranges 0...0.5 Nm and 0...2.5 Nm incl. factory certificate)
• Optional additional ACCREDIA (DAkkS) Zertifikat for counter-clockwise direction
• PEAK function for exact detection of the "snap-point"
  (clockwise and counter-clockwise direction)
• Programmiable "First PEAK" Funktion, makes calibration more easy
• Optional: with data logging functionality
• With optional support LR-Cal LFC-ATCplus suitable for calibration as per ISO 6789-1 and ISO 6789-2.

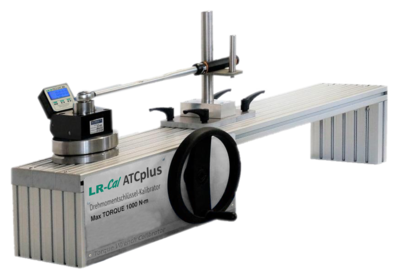

For gradual and continuous reproducable movements of torque wrenches for calibration as per ISO 6789-1 and ISO 6789-2 we recommend the mechanical support code LR-Cal LFC-ATCplus:
