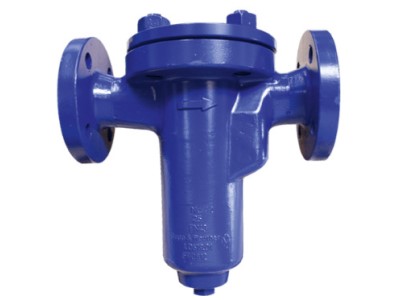

Strainer, Filter Bopp & Reuther


SKU: strainer

Manufacturer: Bopp Reuther

Strainers are used to avoid measuring errors and damage caused by solid particles contained in the fluid.

pdf datasheet

Special Features:

  • low pressure loss because of large filtration area (up to 16 times larger than the pipeline cross section)
  • according to Pressure Equipment Directive (2014/68/EU)
  • customized design
  • NACE


The strainer can be completely drained using the drain valve at the lowest position of the strainer and the conical design of the device (only cast strainers).

Technical Data:

Nominal size DN15 to DN400 (1/2“ bis 16“)
Process connection Flanges according to DIN or ANSI
Material Carbon steel, cast steel, stainless steel, (option: Hastelloy)
Flow range to 3,000 m³/h (792516 gal/h)
Repeatability ±0.01% (depending on flow rate)
Process temperature -200°C to +300°C (-328°F +572°F)
Process pressure Up to 420 bar (6,092 psi)
