Spiramag Electro-Magnetic Flowmeter Bopp & Reuther

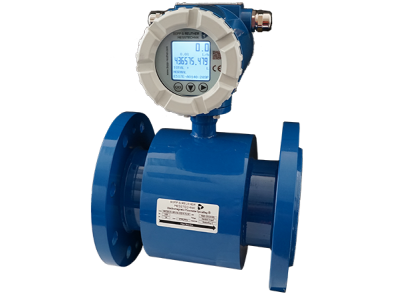

Electromagnetic Flowmeter Spiramag

SKU: Spiramag

Manufacturer: Bopp Reuther

General purpose magnetic inductive flowmeter for applications in the water / waste water industry

pdf datasheet
Ask a question about this product

Applications:

The field of application for all electromagnetic flowmeters of the SpiraMAG® series is the measurement of conductive liquids (>5µS/cm) like water, waste water in continuous flow measurement.
The series comprises the nominal diameters DN 15 to DN 1000 and is available in the pressure stages PN 10/16/40. The standard maximum temperature is 60°C.
Different connections and output signals are available.

Special Features:

  • empty pipe detection
  • third grounding electrode optional
  • bidirectional measurement
  • direct output 4-20 mA, pulse output
  • Modbus (RTU & ASCII)
  • battery powered solutions available

Characteristics:

  • soft rubber liner, ideal for abrasive liquids
  • user friendly converter compact or remote mounted
  • communication interface RS 485

Technical Data:

Nominal size DN 15 up to DN 1000 (on request up to DN 2.000)
Process connection Flanges DIN or ANSI, JIS, Tri-Clamp (others on request)
Material Body in painted steel / optionally stainless steel
Electrodes in Hastelloy C (2.4610), stainless steel platinum plated, Titanium
Liner in soft rubber (Standard), hard rubber or PTFE / PFA
Conductivity >5µS/cm
Flow range 0.03 to 12 m/s
Accuracy ±0.25 % of reading ±0.1 % fulll scale (for powered devices)
Process temperature    0°C to  +70°C (compact, rubber liner)
   0°C to  +90°C (remote, rubber liner)
-40°C to  +100°C (compact, PTFE liner)
-40°C to  +160°C (remote, PTFE liner)
Process pressure up to 40 bar (others on request)
