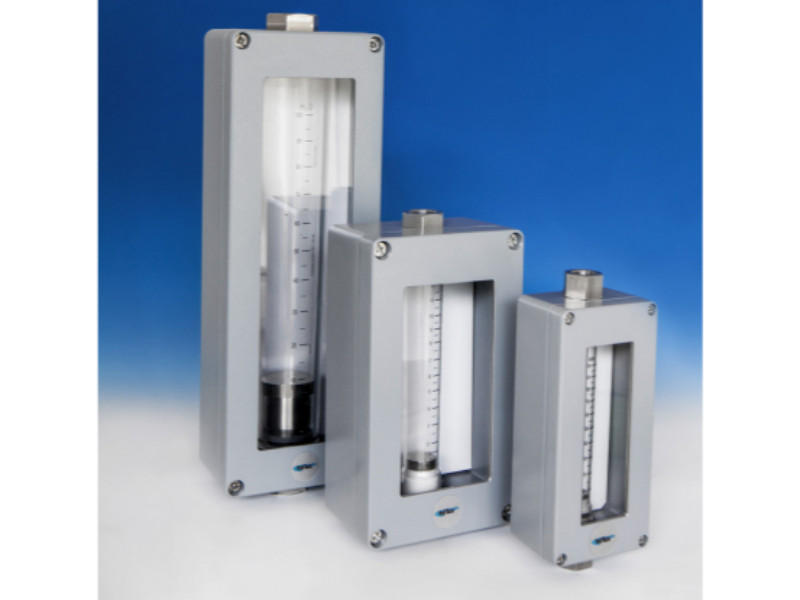

LPL high flow meter
SKU: LPL
Manufacturer: Influx
The LPL Series Housed Flowmeter is suitable for both our glass and acrylic flow tubes mounted within a rugged industrial housing. They are available in 3 tube scale lengths up to 250mm and various connection sizes.
Key Features & Benefits
Direct reading
Low pressure drop
High repeatability
Rugged enclosure
pdf datasheet
Key Features & Benefits
Direct reading
Low pressure drop
High repeatability
Rugged enclosure
pdf datasheet
General
| Gas Range | 5 cm³/min to 120 L/min (Air equiv.) |
|---|---|
| Liquid Range | 2 cm³/min to 4.4 L/min (Water equiv.) |
| Scale Length | approx. max. 30, 100, 140 mm (Compact, Standard, Long) |
| Accuracy Class | 4, 2.5*, 2.5% VDI/VDE 3513 (Compact, Standard*, Long) |
| * ± 2.5% FSD for ranges <= 250 cm³/min Air or <= 10 cm³/min Water | |
| Flowrate Reading | 'Top' edge of the Float @ middle of the Graduation Line |
| Repeatability | Better than 0.5% |
| Temperature | -15°C to 120°C |
| Pressure (Non Shock) | 20 bar max. |
| Connections | ¼" BSP Parallel Female |
Standard Materials
| Connections | 316 Stainless Steel or Nickel Plated Brass |
|---|---|
| Seals | Viton O-Rings, PTFE Valve Packing |
| Flow Tube | Borosilicate Glass |
