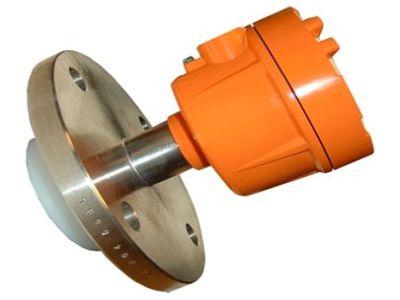

Capacitance Switch ME60 Plate Type
SKU: ME60
Manufacturer: Hycontrol
The ME60 is a plate-type variation of the standard capacitance probe, with a shorter insertion length.
pdf datasheet
pdf datasheet
Hycontrol’s ME Series capacitance level switches provide simple, accurate and reliable level control for a wide range of applications. They are suitable for use on liquids, solids, slurries, pastes, granules, powders and pellets in high temperature, high pressure and corrosive environments.
Unlike some other capacitive switches, this unit works independently of the tank walls using an integral grounding sleeve without the need for a reference probe, which enables it to be used in concrete, plastic or other non-metallic tanks. This technology also provides an ideal solution for interface detection applications such as oil on water and liquid detection underneath a layer of foam.
Hycontrol's capacitance probes provide solid, reliable point switching with minimum maintenance requirements.
Key Benefits
- High corrosion and chemical resistance as standard options
- Universal design can be used for high or low-level detection
- Failsafe options high and low selectable
- Low maintenance technology with no moving parts
- Adjustable sensitivity for a wide range of products
- Adjustable time delay to stop spurious signals from surface ripple
- Interface level detection for difficult applicatio
Key Features
Standard Length: 36 mm
Maximum Temperature: 80 °C
Ground Level Test: Yes
ATEX Option: No
Maximum Temperature: 80 °C
Ground Level Test: Yes
ATEX Option: No
